UVx Sterilizer w/ Alarm


UVx comes standard with 25′ of SJ cord. For additional lengths of SJ cord see Accessories.

SKU: O2Si-UVx Category:


How Ultraviolet Works

The Ultraviolet Lamp emits a germicidal ray which alters or disrupts the DNA or RNA of single celled organisms such as algae, bacteria and protozoa. Properly implementing an Ultraviolet System in-line these organisms can be eradicated effectively without any harmful residuals. Your Ultraviolet System was made to work as a control for green water and single celled organisms. This unit will not completely sterilize the treated wastewater.

As a part of the wastewater treatment, this unit will effectively lower wastewater’s bacterial count. The Ultraviolet Sterilizer works better on filtered water. Any sediment in the water can inhibit UV transmission. Designed for pressure systems. Should be changed after 14 months of continuous use or as needed based on an alarm condition.

25 Watt

  • 20 GPM @ 30,000 µWatt Seconds / cm^2 (30mJ/ cm^2)

40 Watt

  • 48 GPM @ 30,000 µWatt Seconds / cm^2 (30mJ/ cm^2)

57 Watt

  • 53 GPM @ 30,000 µWatt Seconds / cm^2 (30mJ/ cm^2)

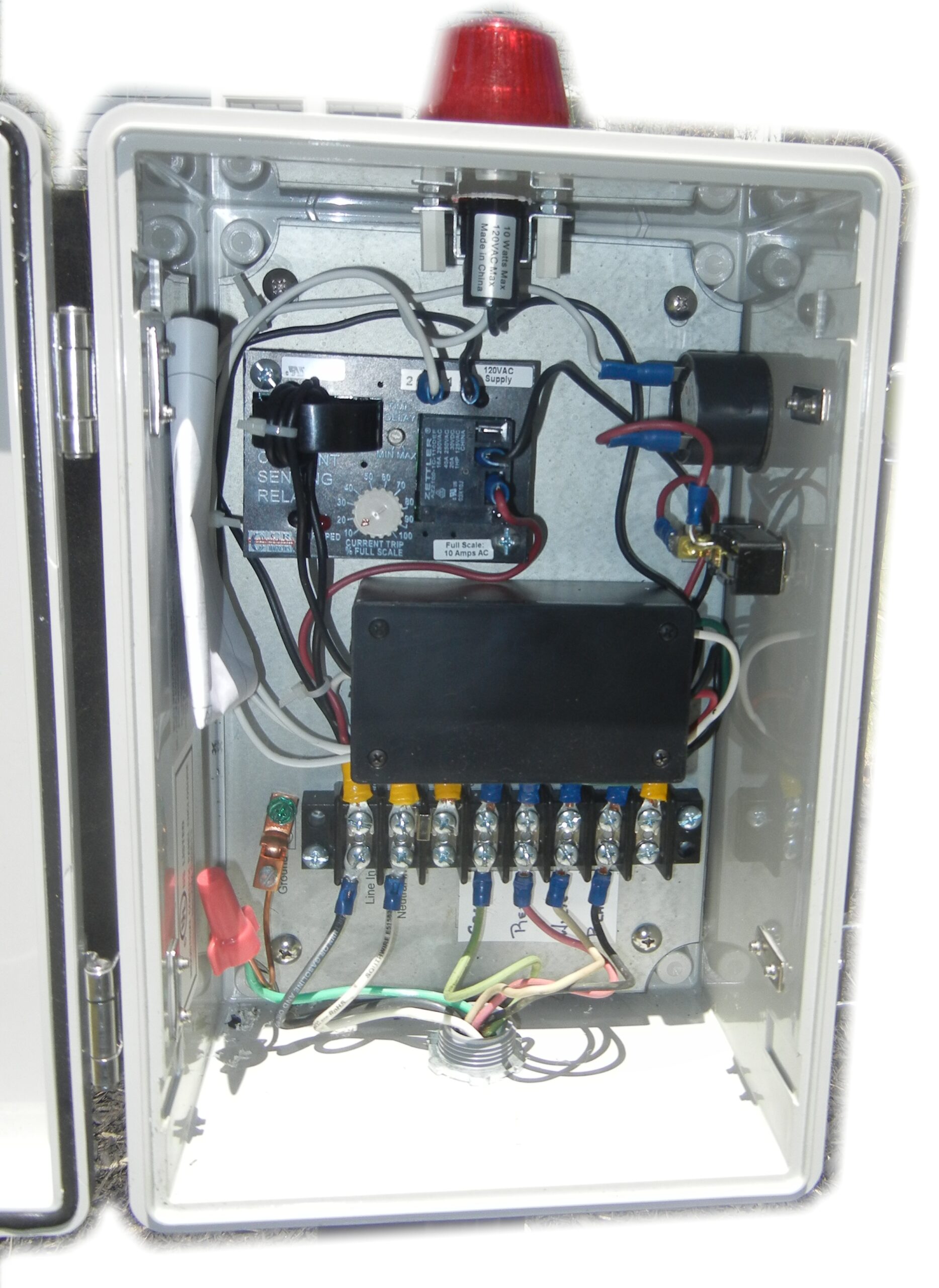

120v UVx Alarm Panel

  • Powered through control pump circuit
  • NEMA 4x rated enclosure
  • Removable backplate for component mounting.
  • Current sensor relay monitors UV lamp
  • Visual and audible alarm
  • Audible alarm mute switch
  • All Internal Parts are Removable and Replaceable
  • No Printed Circuit Boards
  • No Low Voltage Circuits
  • Control Panel Dimensions: 7.75″ wide x 12″ tall x 6″ deep

Field Guide & Maintenance  – UVx25

Field Guide & Maintenance  – UVx40

Field Guide & Maintenance  – UVx57

Sample Port Schematic

Additional information

UVx Sterilizer

25 Watt, 40 Watt, 57 Watt
