Dual Pump Time Dose

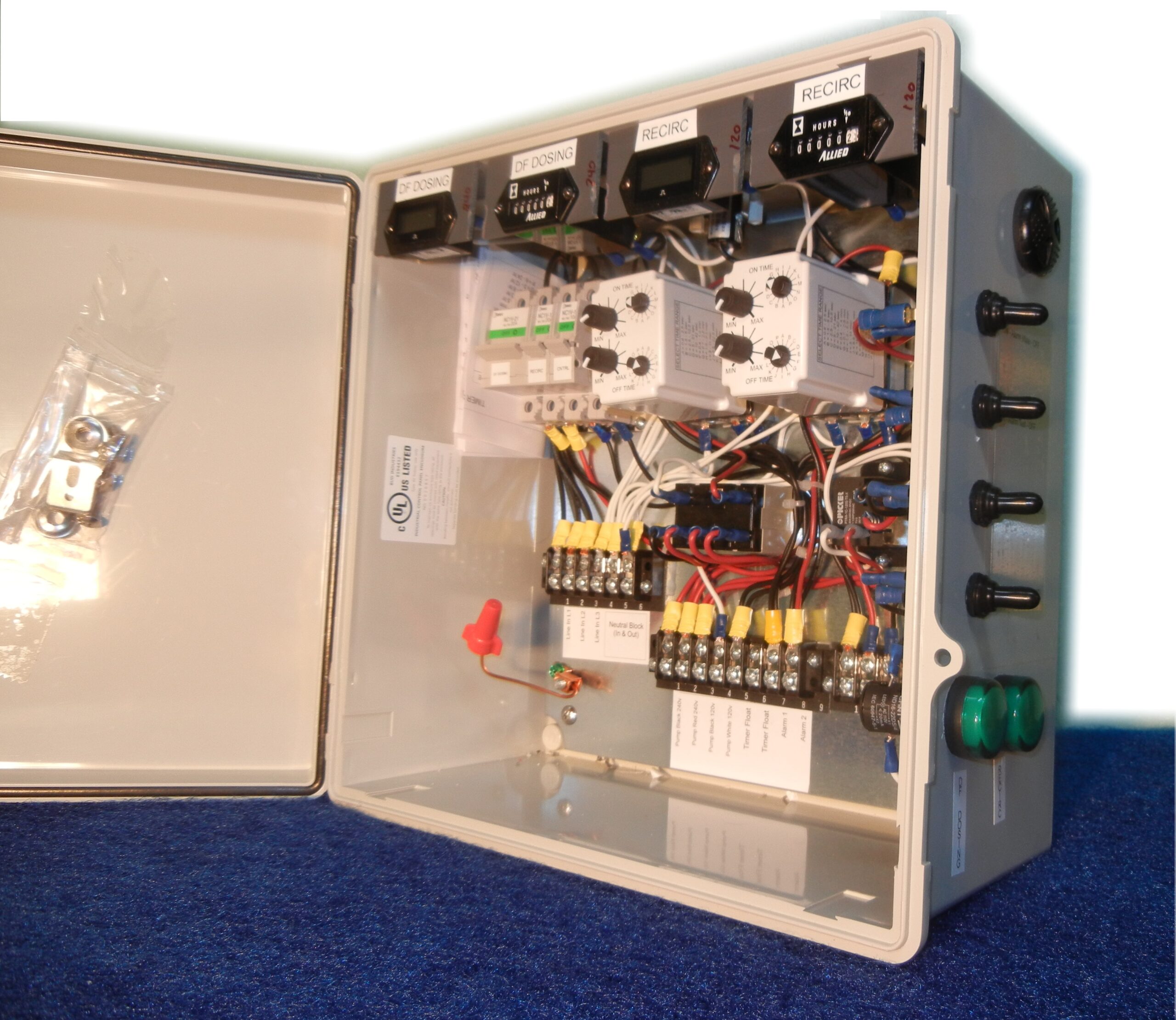

This control panel is well suited for a recirculating media filter.  One pump can be set to recirculate and the second pump can be set to dose the drainfield.  It’s completely analog and easy to install and operate.  All the parts are “plug & play” replaceable.  This panel is set up for two 120v pumps.

SKU: DP-TD-240v Category:


Dual Pump Time Dose 120/ 240v Control Panel
(Float Switches Sold Separately)

Separate control/pump circuits
(one 240v 20 amp + one 120v 20 amp circuits for 2 pumps and
one 120v 10 amp circuit for controls)
NEMA 4x rated enclosure
Removable backplate for component mounting.
Time dosing relay for each pump
Visual and audible alarm
Alarm test switch
Audible alarm mute switch
Elapsed time meter
Cycle counter for each pump
Run light for each pump
Timer on/alarm pump float terminals (low amps)
Manual pump override switch for each pump
All internal parts are removable and replaceable
No printed circuit boards
No low voltage circuit
Control Panel Dimensions: 13″ wide x 13″ tall x 7.5″ deep

Cutsheet – DP-TD (120v)

Cutsheet – DP-TD (240v)

Cutsheet – DP-TD (EZ-Treat)

Field Guide – DP-TD (120v), pg 1

Field Guide – DP-TD (120v), pg 2

Field Guide – DP-TD (240v), pg 1

Field Guide – DP-TD (240v), pg 2

Geya Timer Relay

Macromatic Timer Relay

Additional information

Panel Type

120v Analog, 120v/240v Analog, 120v PLC, 120v/240v PLC
