Simplex Time Dose

$490.00

SKU: SIM-TD-240v Category:

Description

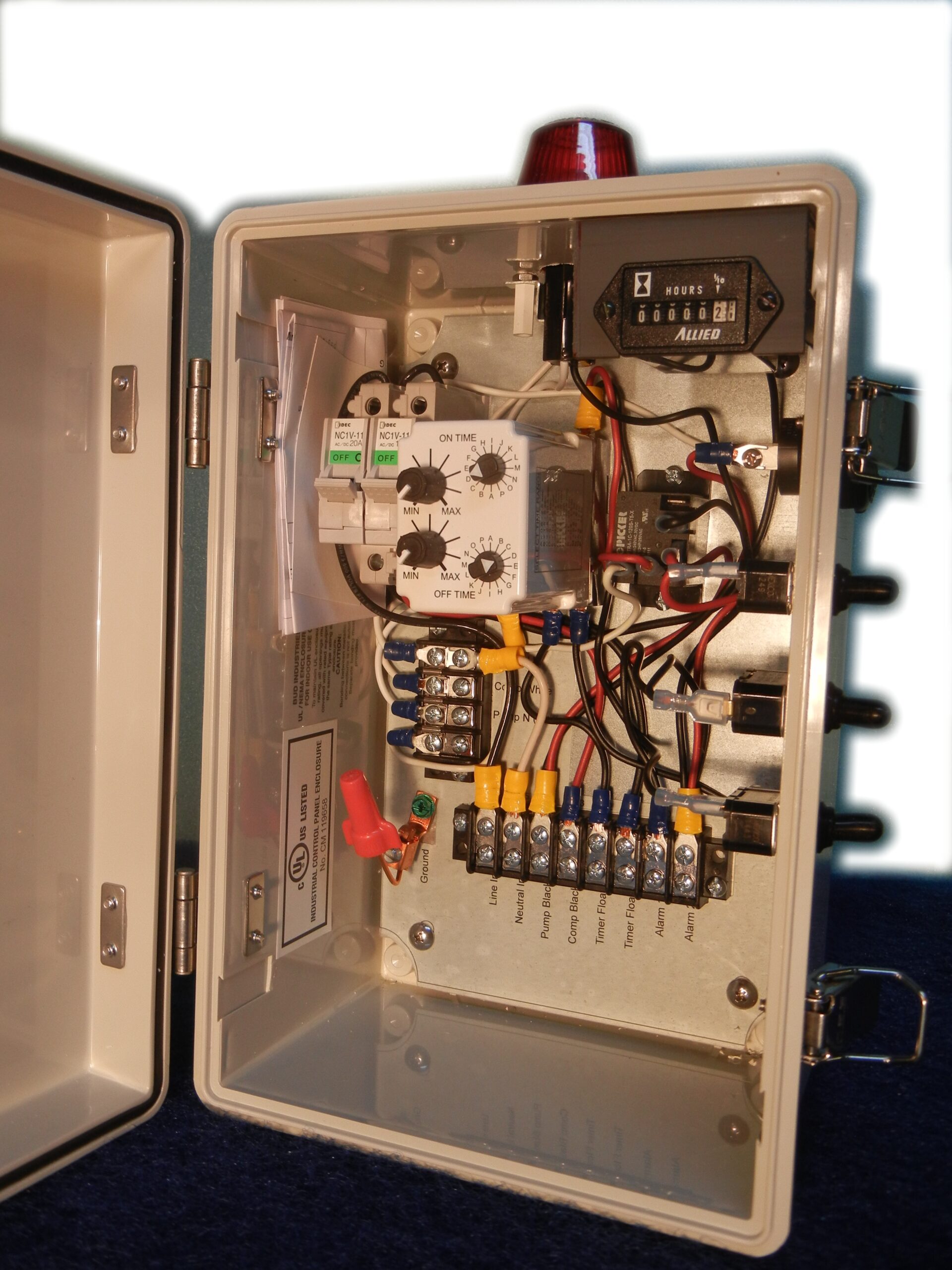

Simplex Time Dose 120/ 240v Control Panel
(Float Switches Sold Separately)

Panel Options Include:
120v or 120/240v pump circuit
Analog or PLC based controls

Separate control/pump circuits
(one 240v 20 amp circuit for pump and
one 120v 10 amp circuit for controls)
NEMA 4x rated enclosure
Removable backplate for component mounting.

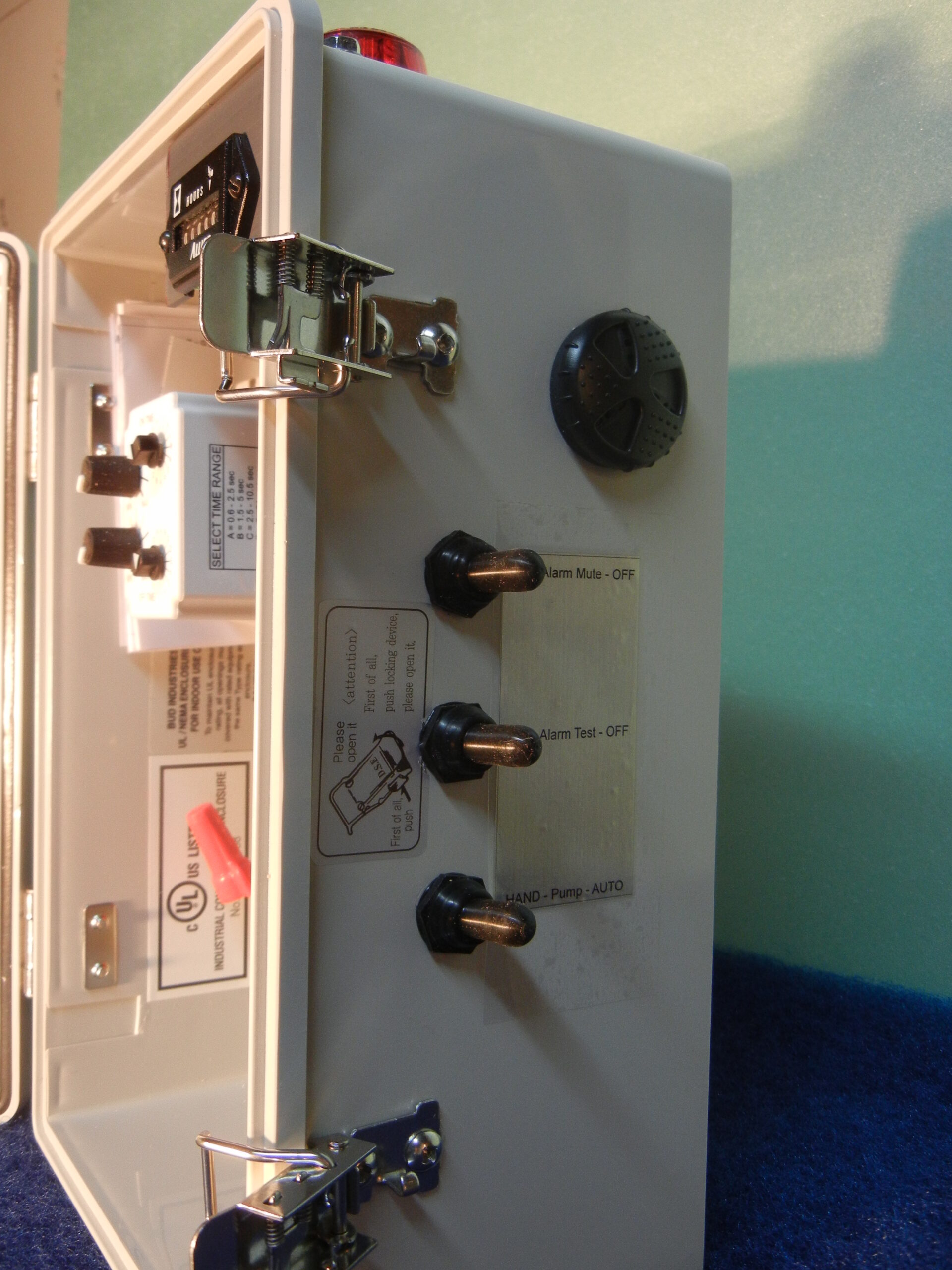

Visual and audible alarm
Alarm test switch
Audible alarm mute switch
Elapsed time meter
All internal parts are removable and replaceable
No printed circuit boards
No low voltage circuit
Control Panel Dimensions: 7.75″ wide x 12″ tall x 6″ deep

Field Guide – Float Configuration

Cutsheet – Sim-TD (120v)

Cutsheet – Sim-TD (120-240v)

Field Guide – Sim-TD (120v)

Field Guide – Sim-TD (120-240v)

Macromatic Timer Relay

Geya Timer Relay

Additional information

Weight 7.5 lbs
Dimensions 14 × 8 × 10 in
Panel Type

120v Analog, 120v/240v Analog, 120v PLC, 120v/240v PLC
